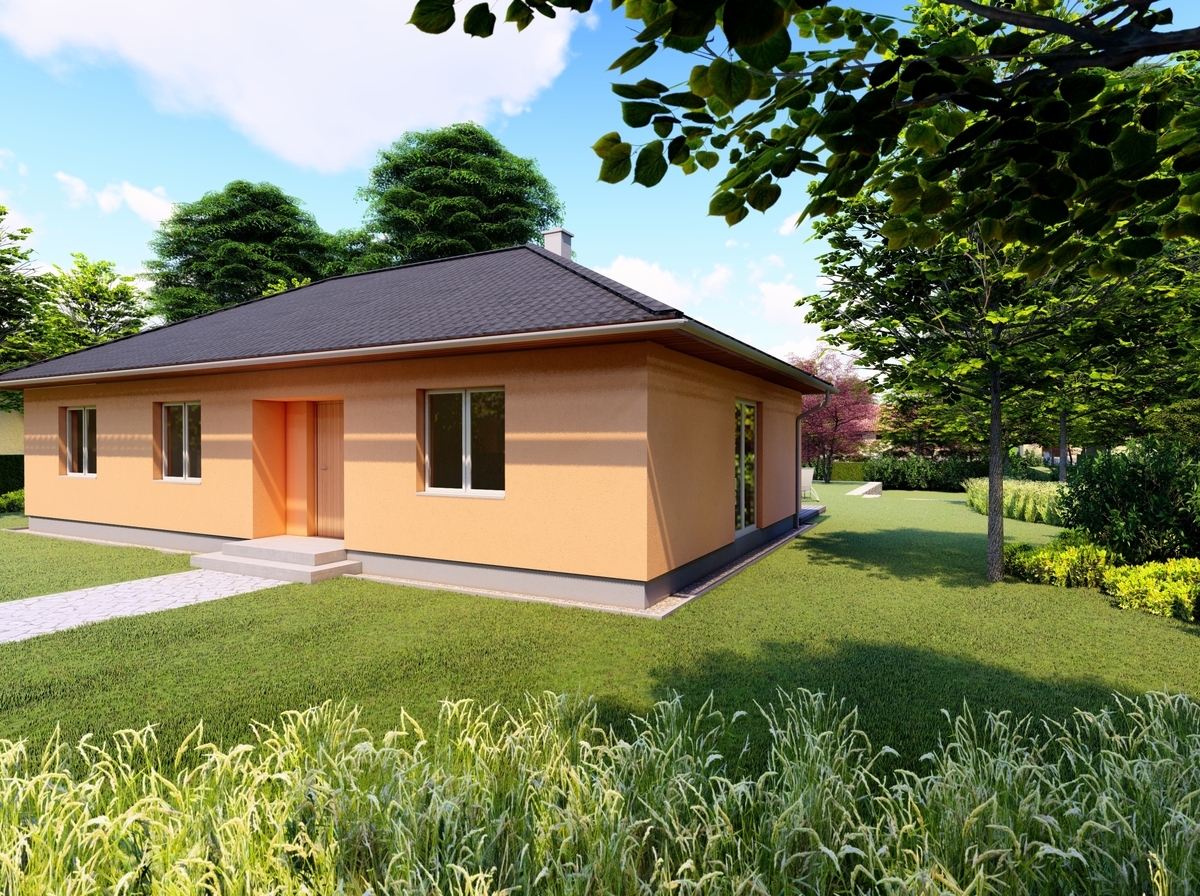

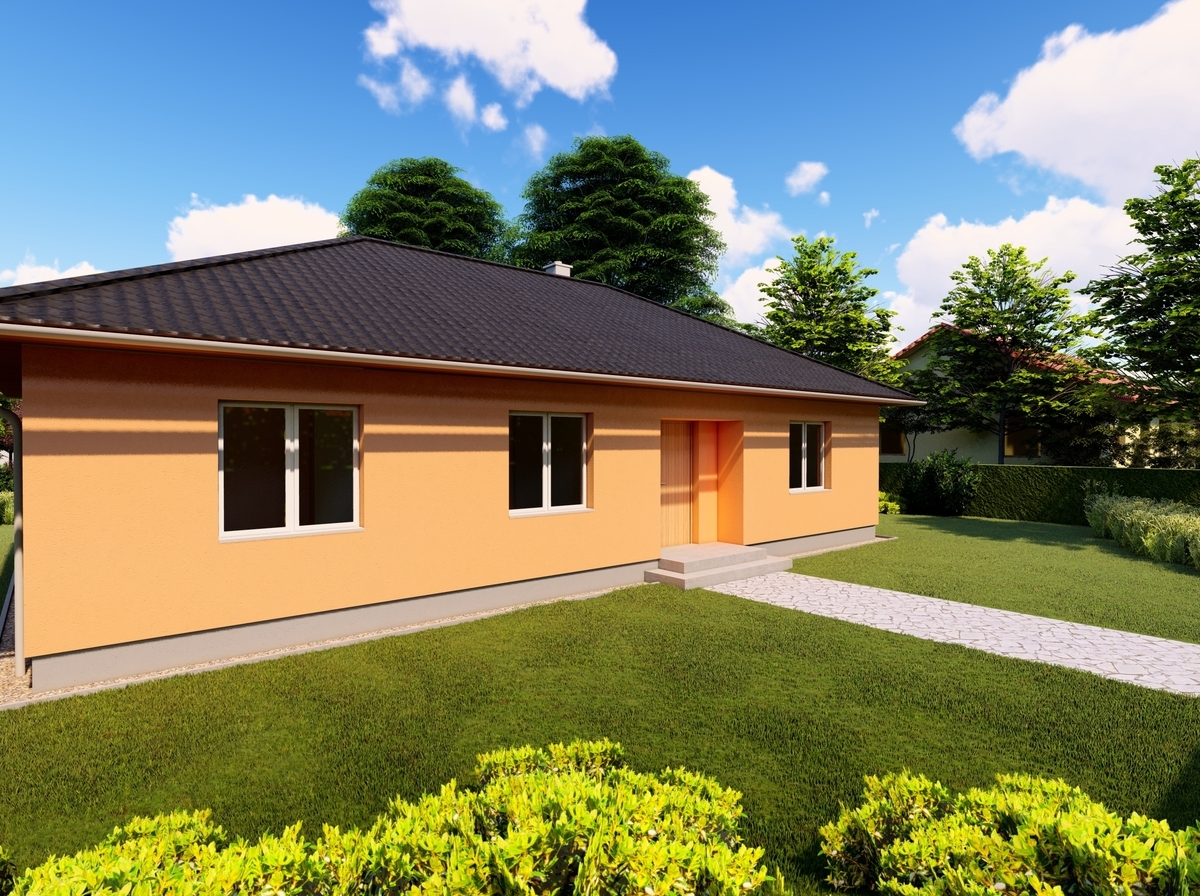

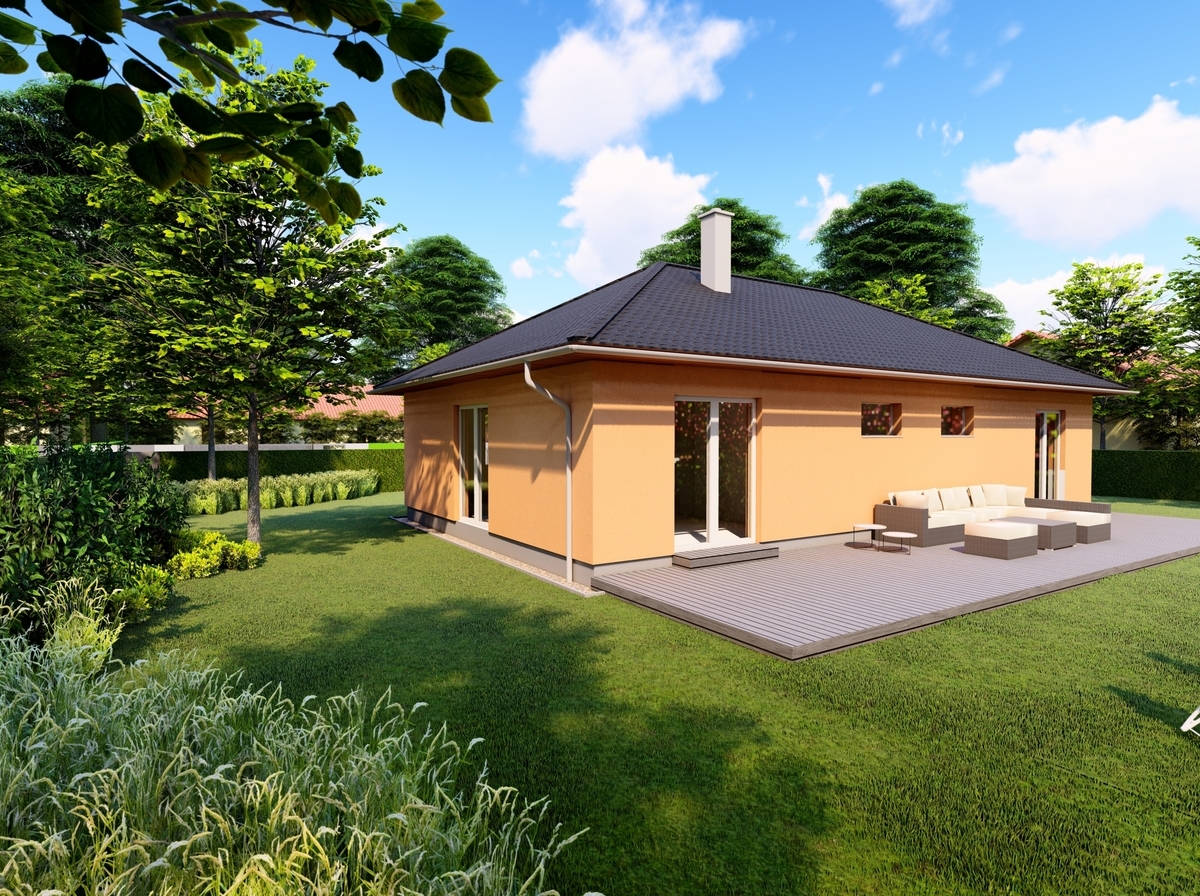

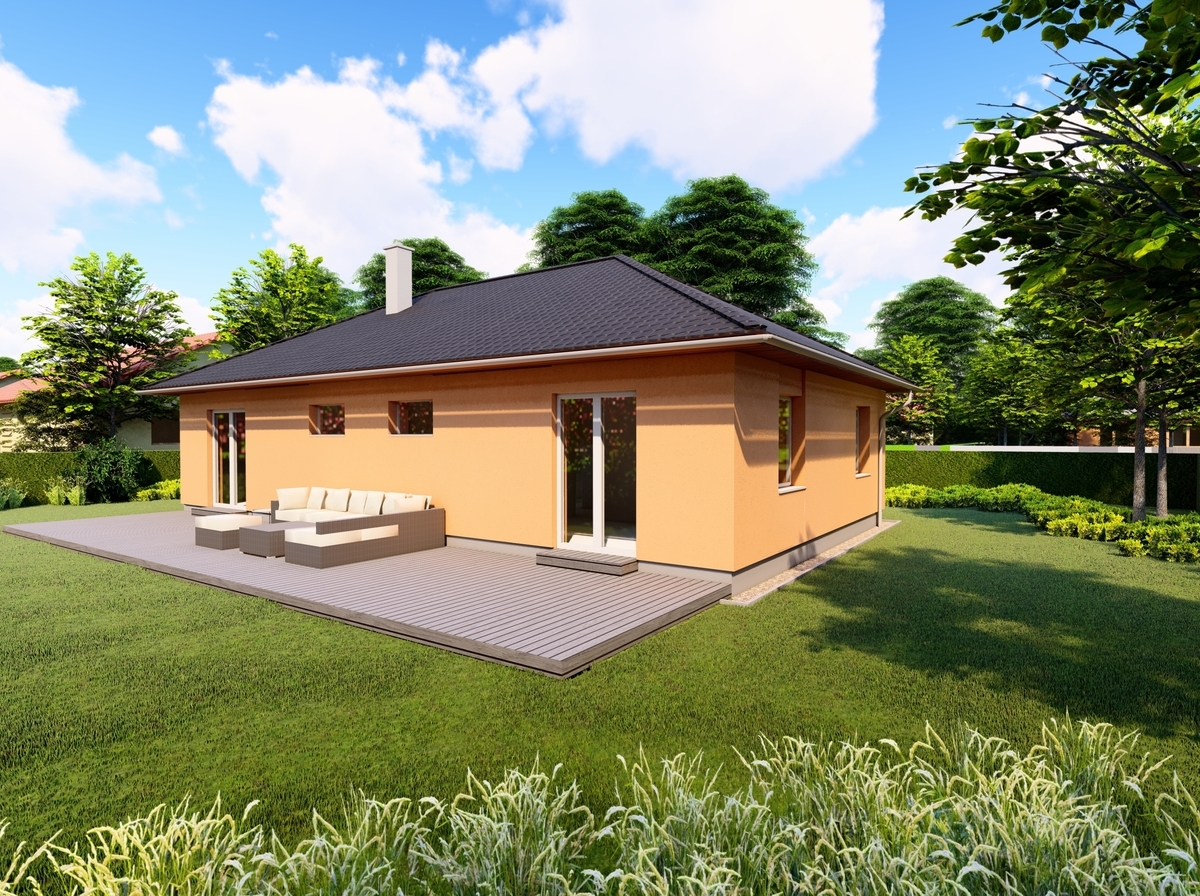

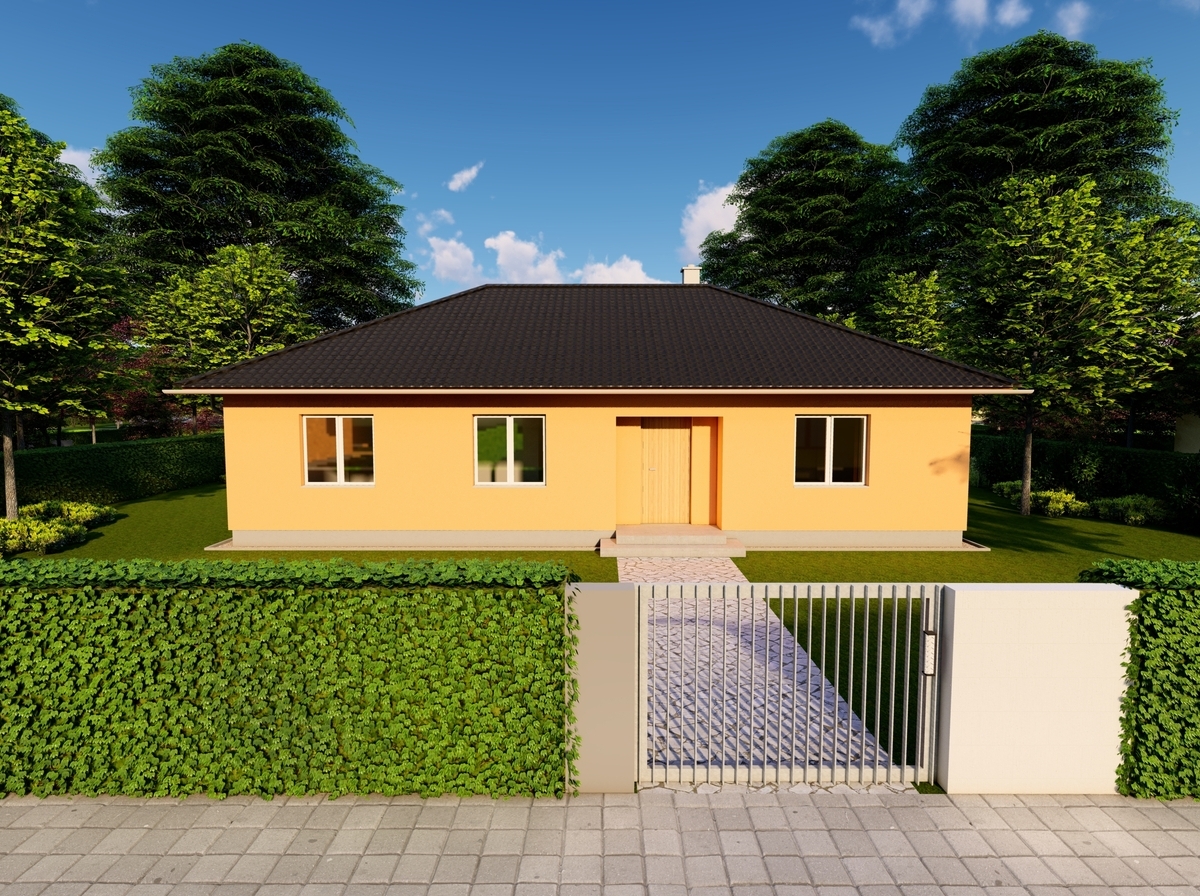

Abies is a single-story family home for a family of four to six. Despite its modest size, the bungalow provides enough space for two children's rooms, a master bedroom, and a practical vestibule. The modern connection between the kitchen and living room creates a large space for the whole family to gather. When designing the house, great emphasis was placed on minimizing investment and operating costs. Thanks to the simple design of the load-bearing structures, the interior of the house can be easily adapted to individual requirements. The house can be built in a mirror-inverted design.
| Layout | 4 + kk | |
| Built-up area | 122 | m |
| Usable area | 100 | m |
| Ridge height | 5.5 | m |
| Roof slope | 25 | ° |
| Orientation | E, S, W | |
1. Rough construction
from CZK 754,000 incl. VAT
- Delivery incl. installation
- Perimeter walls made of K-KONTROL® panels
- Internal load-bearing and stiffening partitions made of K-KONTROL® panels
- Structural timber
- Connecting and anchoring material
- Roof truss structure
- Assembly documentation
2. External completion of the shell
from CZK 1,238,000 incl. VAT
- Delivery incl. assembly
- Complete concrete roofing incl. flashing elements
- Plastic windows and entrance doors with insulated triple glazing
- Contact insulation system with 140 mm thick polystyrene
- Roof overhang soffits with spruce boards, including paint
- Chimney body with ventilation shaft
1+2 Closed shell construction total
from CZK 1,992,000 incl. VAT
The price does not include:
- Project documentation
- Foundation slab, utility connections (water, sewer, electricity)
- Interior completion of the family house (interior non-load-bearing plasterboard partitions, interior installations, interior surfaces, floor and ceiling compositions, bathroom and kitchen equipment, terrace, interior doors)
- VRN (incidental budget costs – building location)
